Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 27 Pin |

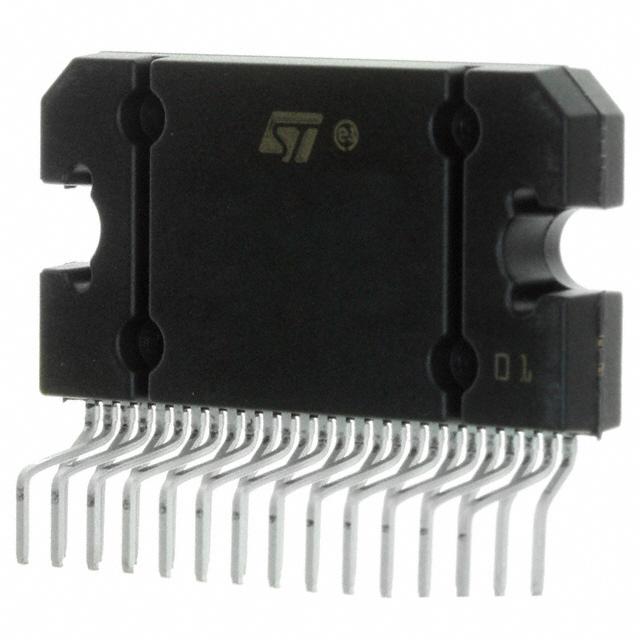

Case/Package | Flexiwatt-27 |
Output Current | 8000 mA |
Number of Circuits | 1 Circuit |
Number of Channels | 4 Channel |
Number of Positions | 27 Position |
Power Dissipation | 85 W |
Common Mode Rejection Ratio | 55 dB |
Output Power | 75 W |
Gain | 30 dB |
Input Offset Voltage | 100 mV |
Output Current (Max) | 8000 mA |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 85000 mW |
Supply Voltage | 8V ~ 18V |
Supply Voltage (Max) | 18 V |
Supply Voltage (Min) | 8 V |
Show | |
Size-Length | 29.23 mm |
Size-Width | 11.1 mm |
Size-Height | 15.7 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
