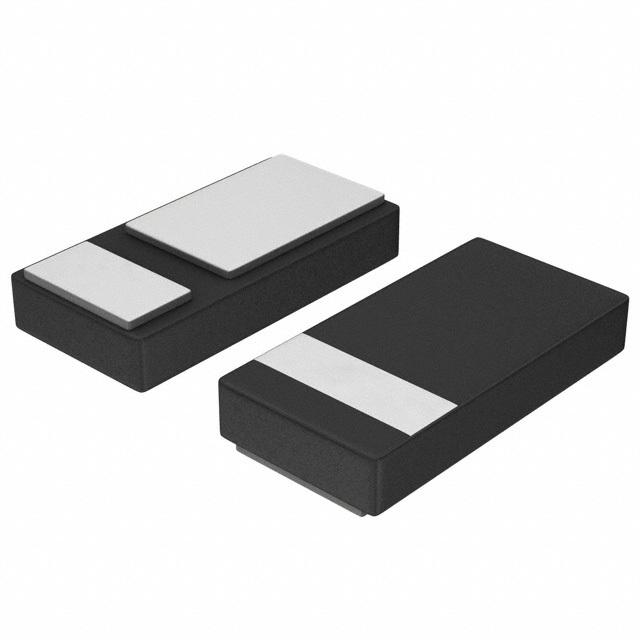

Image is for your reference only,please check specifications for details

NSR20F20NXT5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5463536
Category:
Schottky Diode
Package:
DSN-2
Datasheet:
Datasheet 3D Model
Description:
Schottky Barrier Diode, 2A, 20V DSN2 0603 Schottky Diodes 20V 2A, DSN2, 1.6x0.8, 0.9P (0603), 5000-DSFTP
Stock Locations:
Availability:
569 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.38

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NSR20F20NXT5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DSN-2
Number of Positions	2 Position
Forward Voltage	470mV @2A
Power Dissipation	1560 mW
Thermal Resistance	213℃/W (RθJA)
Reverse recovery time	80 ns
Forward Current	2 A
Max Forward Surge Current (Ifsm)	28 A
Maximum Forward Voltage (Max)	470 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	1560 mW
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
