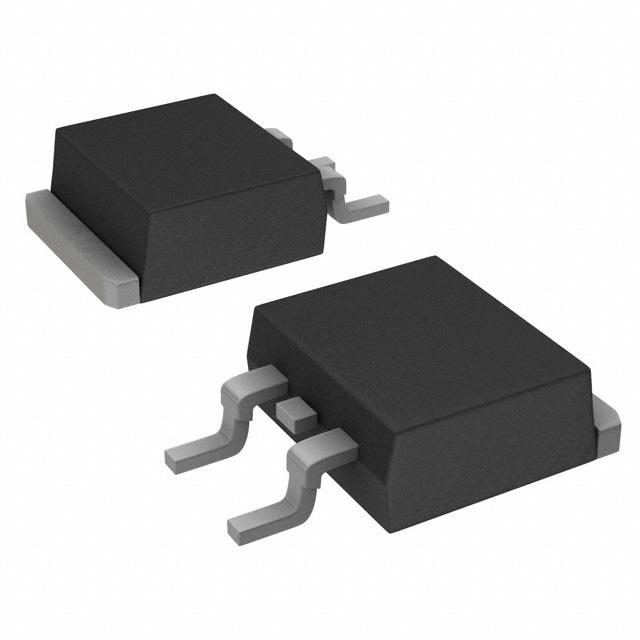

- N-Channel 200V 30A (Ta) 2W (Ta), 214W (Tc) Surface Mount D2PAK
NTB30N20 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Voltage Rating (DC) | 200 V |
| Current Rating | 30.0 A |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 68 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 214 W |
| Input Capacitance | 1.20 nF |
| Gate Charge | 46.0 nC |
| Drain to Source Voltage (Vds) | 200 V |
| Breakdown Voltage (Drain to Source) | 200 V |
| Breakdown Voltage (Gate to Source) | ±30.0 V |
| Continuous Drain Current (Ids) | 27.0 A |
| Input Capacitance (Ciss) | 2335pF @25V(Vds) |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 2W (Ta), 214W (Tc) |
| Show | |
| Size-Length | 10.29 mm |
| Size-Width | 9.65 mm |
| Size-Height | 4.83 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
