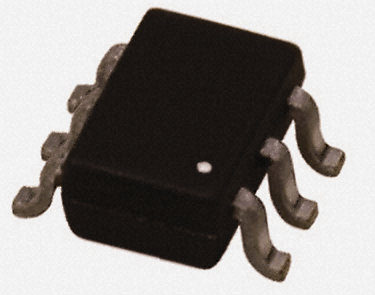

NUD3105DMT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2588933
Category:
FET Driver
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
MOSFET; Dual N-Ch; VDSS 6V; RDS(ON) 0.9Ω; ID 500mA; SC-74; PD 380mW; VGS 6VDC; -40℃
Stock Locations:
Availability:
277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.3

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Always have access to a constant power source by implementing this NUD3105DMT1G specialized power IC from ON Semiconductor. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This USB PWM controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

NUD3105DMT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Supply Voltage (DC)	3.00V (min)
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Output Voltage	6.00 V
Output Current	400 mA
Number of Channels	2 Channel
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.9 Ω
Power Dissipation	380 mW
Drain to Source Voltage (Vds)	6.00 V
Breakdown Voltage (Drain to Source)	6 V
Continuous Drain Current (Ids)	500 mA
Rise Time	32.0 ns
Switching Frequency	10 kHz
Output Current (Max)	300 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	380 mW
Supply Voltage (Max)	6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	0.94 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
