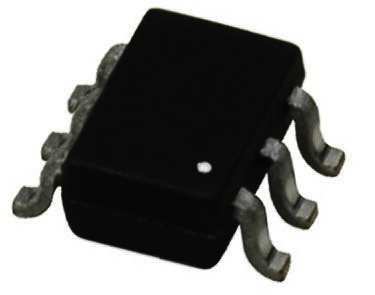

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NUD3112DMT1G is an Inductive Load Driver used to switch inductive loads such as relays, solenoids incandescent lamps and small DC motors without the need of a free-wheeling diode. The device integrates all necessary items such as the MOSFET switch, ESD protection and Zener clamps. It accepts logic level inputs thus allowing it to be driven by a large variety of devices including logic gates, inverters and microcontrollers.
Provides a robust driver interface between DC relay coil and sensitive logic circuits
Optimized to switch relays of 12V rail
Capable of driving relay coils rated up to 6W at 12V
Internal Zener eliminates the need of free-wheeling diode
Internal Zener clamp routes induced current to ground for quieter systems operation
Low VDS(ON) reduces system current drain

Show

NUD3112DMT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-74-6
Supply Voltage (DC)	14.0V (max)
Operating Voltage	14.0V (max)
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Output Voltage	14 V
Output Current	400 mA
Power Dissipation	380 mW
Drain to Source Voltage (Vds)	14.0 V
Continuous Drain Current (Ids)	500 mA
Rise Time	61 ns
Output Current (Max)	300 mA
Fall Time	36 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	380 mW
Supply Voltage (Max)	14 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	0.94 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
