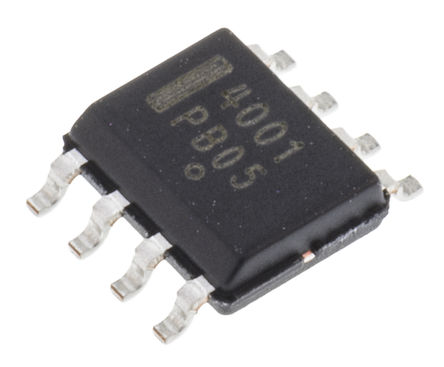

NUD4001DR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5282800
Category:
LED Driver, LED Display Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NUD4001DR2G LED Driver, Linear, 3.6V to 30V input, 4Outputs, 28V/500mA out, SOIC-8
Stock Locations:
Availability:
9,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NUD4001DR2G is a high current LED Driver designed to replace discrete solutions for driving LEDs in low voltage AC-DC applications. An external resistor allows the circuit designer to set the drive current for different LED arrays.
Supplies constant LED current for varying input voltages
AEC-Q101 Qualified and PPAP capable
Maintains a constant light output during battery drain
Reduces board space and component count
Simplifies circuit and system designs

Show

NUD4001DR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	30.0V (max)
Operating Voltage	30 V
Current Rating	500 mA
Halogen Free Status	Halogen Free
Number of Outputs	4 Output
Input Voltage (DC)	3.60V ~ 30.0V
Output Voltage	28 V
Output Current	500 mA
Supply Current	500 mA
Number of Positions	8 Position
Power Dissipation	1130 mW
Topology	Linear
Thermal Resistance	110℃/W (RθJA)
Input Voltage (Max)	30 V
Input Voltage (Min)	3.6 V
Output Voltage (Max)	28 V
Input Power (Max)	1.13 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1130 mW
Supply Voltage	30 V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	3.6 V
Input Voltage	30 V
	Show
Size-Length	5 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
