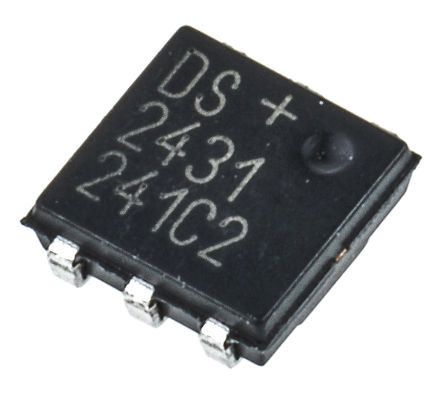

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DS2431P+ is a 1024bit, 1-Wire EEPROM in 6 pin TSOC package. This EEPROM chip is organized as four memory pages of 256 bits each. Data is written to an 8byte scratchpad, verified and then copied to EEPROM memory. The four memory pages can individually be write protected or put in EPROM emulation mode where bits can only be changed from 1 to 0 state. The DS2431 communicates over single conductor 1-Wire bus. The communication follows the standard 1-Wire protocol. Each device has its own unalterable and unique 64bit ROM registration number that is factory lasered into chip. The registration number is used to address device in a multidrop, 1-wire net environment.
Easily add traceability and relevant information to any individual system
Switchpoint hysteresis and filtering to optimize performance in presence of noise
1-wire interface lowers cost and interface complexity
IEC 1000-4-2 level 4 ESD protection (±8KV contact, ±15KV air)
Reads and writes over wide voltage range from 2.8V to 5.25V from -40°C to 85°C
Communicates to host with single digital signal at 15.4Kbps or 125Kbps
Operating temperature range from -40°C to 85°C

Show

DS2431P+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOC-6
Supply Voltage (DC)	5.00 V, 5.25 V (max)
Operating Voltage	2.8V ~ 5.25V
Number of Positions	6 Position
Access Time	2 µs
Memory Size	125 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.8V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.8 V
	Show
Size-Length	4 mm
Size-Width	3.89 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
