**LED Shunt Protectors, ON Semiconductor**
These devices provide a current bypass when an LED fails to ensure that whole strings of LEDs are not affected by one LED failure. Particularly useful in lighting applications which require a high degree of reliability. They are also applicable to other loads where curcuit continuity is required.

Show

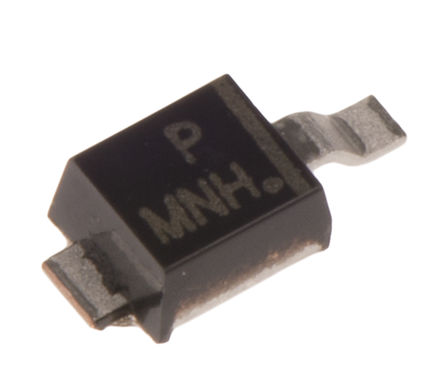

NUD4700SNT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Operating Voltage	5.5 V
Power Rating	1.56 W
Halogen Free Status	Halogen Free
Breakdown Voltage	7.5 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Test Current	1 A
Max Breakdown Voltage	7.5 V
Peak Pulse Power	1.56 W
Holding Current (Max)	12 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.05 mm
Size-Width	2.18 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	ECL99
