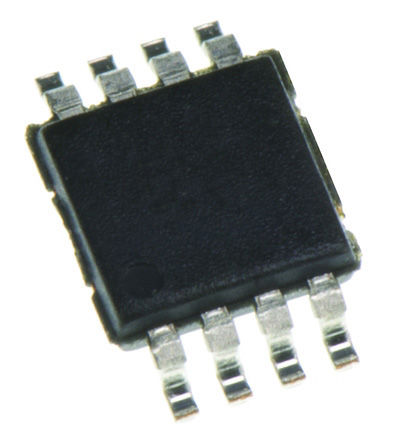

Image is for your reference only,please check specifications for details
- ADS8325IDGKT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2620480
-
Category:Analog to Digital, ADC IC
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS ADS8325IDGKT Analogue to Digital Converter, 16Bit, 100KSPS, Single, 2.7V, 5.5V, VSSOP
-
Stock Locations:
-
Availability:10,678 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 29.41
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The ADS8325 is a 16-bit, sampling, Analog-to-Digital (A/D) converter specified for a supply voltage range from 2.7V to 5.5V. It requires very little power, even when operating at the full 100kHz data rate. At lower data rates, the high speed of the device enables it to spend most of its time in the power-down mode. For example, the average power dissipation is less than 1mW at a 10kHz data rate.
- FEATURES
- • 16-Bits No Missing Codes
- • Very Low Noise: 3LSBPP
- • Excellent Linearity: ±1.5LSB typ
- • microPower:
- – 4.5mW at 100kHz
- – 1mW at 10kHz
- • MSOP-8 and SON-8 Packages (SON Package Size Same as 3x3 QFN)
- • 16-Bit Upgrade to the 12-Bit ADS7816 and ADS7822
- • Pin-Compatible With the ADS7816, ADS7822, ADS7826, ADS7827, ADS7829, and ADS8320
- • Serial (SPI™/SSI) Interfaces
- APPLICATIONS
- • Battery-Operated Systems
- • Remote Data Acquisition
- • Isolated Data Acquisition
- • Simultaneous Sampling, Multi-Channel
- Systems
- • Industrial Controls
- • Robotics
- • Vibration Analysis
ADS8325IDGKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 2.70V (min) |
| Supply Current | 900 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 4.5 mW |
| Sample Rate | 100 ksps |
| Power Consumption | 2.25 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 7.5 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 2.5V, 5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.97 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
