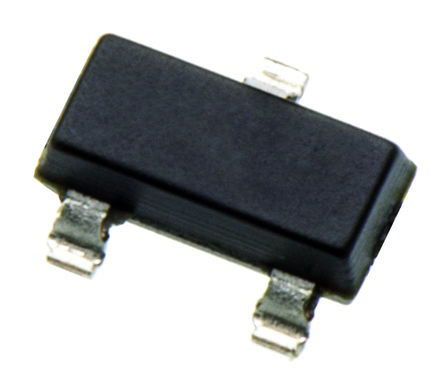

NUP3105LT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC30229266
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NUP3105LT3G ESD Protection Device, 66V, SOT-23, 3Pins, 32V, 350W
Stock Locations:
Availability:
43,890 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Even low voltage discharges can cause damage to electronic components so get this tvs NUP3105LT3G ESD protection device from ON Semiconductor for added protection. This device"s maximum clamping voltage is 66 V. This ESD diode has a maximum ESD protection device voltage of 30@Contact Disc/8@HBM/0.4@MM kV. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a dual configuration.

Show

NUP3105LT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Operating Voltage	32 V
Capacitance	30 pF
Breakdown Voltage	35.6 V
Number of Positions	3 Position
Power Dissipation	350 W
Clamping Voltage	66 V
Test Current	1 mA
Peak Pulse Power	350 W
Min Breakdown Voltage	35.6 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.01 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
