Description

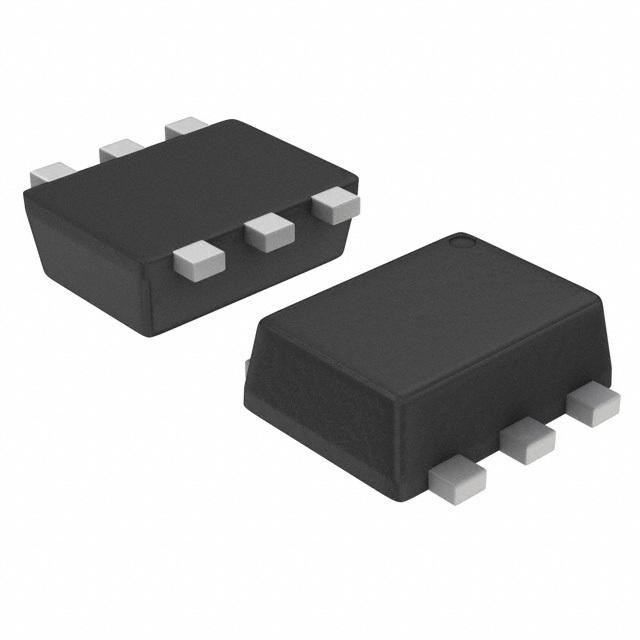

- Protect users and systems from electrostatic discharge with this tvs NUP4102XV6T1G ESD protection device from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of 30@Air Gap/30@Contact Disc/16@HBM/0.4@MM kV. This device"s maximum clamping voltage is 25 V. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a quad configuration.
NUP4102XV6T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-563-6 |
| Operating Voltage | 12 V |
| Breakdown Voltage | 17.8 V |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 6 Position |
| Clamping Voltage | 25 V |
| Test Current | 1 mA |
| Peak Pulse Power | 75 W |
| Min Breakdown Voltage | 13.6 V |
| Reverse Breakdown Voltage | 14 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 1.2 mm |
| Size-Height | 0.55 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
