Description

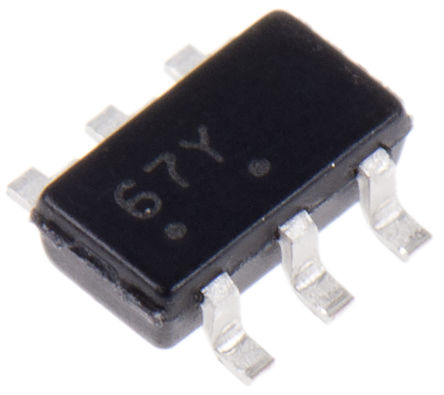

The NUP4302MR6T1G is a Schottky Diode Array for four data line ESD protection. It is designed to protect high speed data line interface from ESD, EFT and lighting.
Very low forward voltage drop
Fast switching
PN junction guard ring for transient and ESD protection
IEC 61000-4-2 Level-4 ESD protection
-55 to 125°C Operating temperature range

Show

NUP4302MR6T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Voltage Rating (DC)	30.0 V
Operating Voltage	1 V
Current Rating	200 mA
Capacitance	28 pF
Number of Positions	6 Position
Forward Voltage	1 V
Power Dissipation	225 mW
Reverse recovery time	5 ns
Forward Current	200 A
Min Breakdown Voltage	30 V
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	225 mW
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
