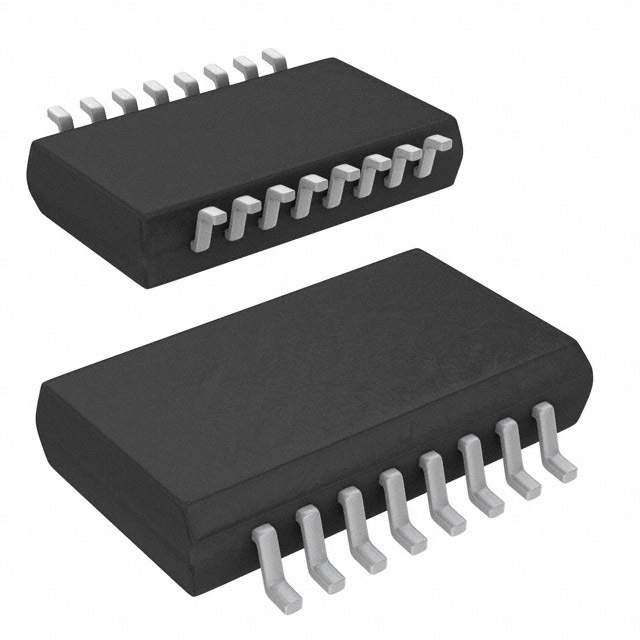

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The OP497 is a quad op amp with precision performance in the space-saving, industry standard 16-lead SOlC package. Its combination of exceptional precision with low power and extremely low input bias current makes the quad OP497 useful in a wide variety of applications.
- FEATURES
- Low offset voltage: 75 μV maximum
- Low offset voltage drift: 1.0 μV/°C maximum
- Very low bias current
- 25°C: 150 pA maximum
- −40°C to +85°C: 300 pA maximum
- Very high open-loop gain: 2000 V/mV minimum
- Low supply current (per amplifier): 625 μA maximum
- Operates from ±2 V to ±20 V supplies
- High common-mode rejection: 114 dB minimum
- APPLICATIONS
- Strain gage and bridge amplifiers
- High stability thermocouple amplifiers
- Instrumentation amplifiers
- Photocurrent monitors
- High gain linearity amplifiers
- Long-term integrators/filters
- Sample-and-hold amplifiers
- Peak detectors
- Logarithmic amplifiers
- Battery-powered systems
OP497GS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Current | 525 µA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Common Mode Rejection Ratio | 135 dB |
| Input Capacitance | 3.00 pF |
| Slew Rate | 150 mV/μs |
| Gain Bandwidth Product | 500 kHz |
| Input Impedance | 500 GΩ |
| Input Offset Voltage | 80 µV |
| Input Bias Current | 60 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 500 kHz |
| Minimum CMRR Range | 114 dB |
| Supply Voltage (Max) | 40 V |
| Supply Voltage (Min) | 4 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
