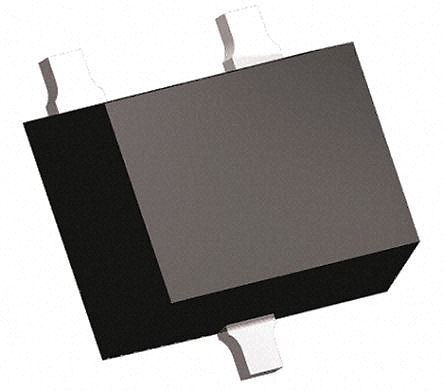

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NVE4153NT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-89-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.127 Ω
Polarity	N-Channel
Power Dissipation	300 mW
Threshold Voltage	760 mV
Drain to Source Voltage (Vds)	26 V
Rise Time	4.4 ns
Input Capacitance (Ciss)	110pF @16V(Vds)
Fall Time	7.6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	1.7 mm
Size-Width	0.95 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
