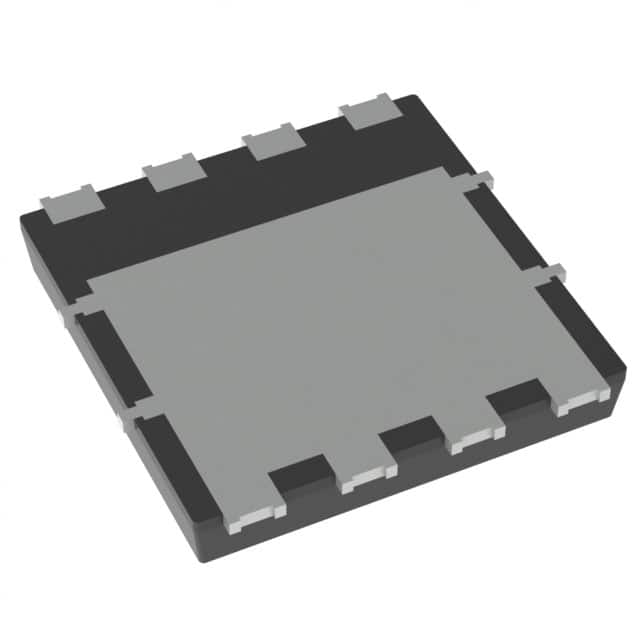

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 40V 553.8A (Tc) 5W (Ta) Surface Mount 8-DFNW (8.3x8.4)
NVMTS0D4N04CLTXG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 8 Pin |
| Case/Package | DFNW |
| Number of Positions | 8 Position |
| Power Dissipation | 244 W |
| Threshold Voltage | 2.5 V |
| Drain to Source Voltage (Vds) | 40 V |
| Rise Time | 147 ns |
| Input Capacitance (Ciss) | 20600pF @20V(Vds) |
| Fall Time | 107 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 5000 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
