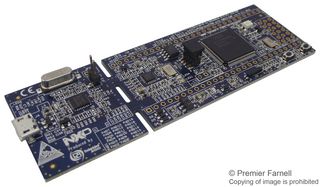

Image is for your reference only,please check specifications for details

OM13085 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC79580796
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
NXP OM13085 Evaluation Board, LPC1769 LPCXpresso, Cortex-M3, 120MHz CPU, Reset/ISP Boot Mode Buttons
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.69

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OM13085 is a pioneered by NXP and Embedded Artists, the LPCXpresso™ Development Platform includes LPCXpresso target boards to get you up and running quickly. Designed for simple, rapid prototyping and evaluation, LPCXpresso™ development boards work with the LPCXpresso IDE and other industry leading partner tool chains. LPCXpresso™ is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production. This LPCXpresso™ board is populated with the LPC1769 to demonstrate and enable evaluate of the features of the LPC1700 product series. The board includes an on-board, CMSIS-DAP compatible debug probe as well as a connector for use with 3rd party debug probes.
LPC1769 Cortex-M3 based microcontroller
Integrated CMSIS-DAP debug probe
Debug probe section of the board can be snapped off to reduce board size
10-pin SWD connector for use with an external debug probe
Ethernet 10/100 PHY
Reset and ISP boot mode buttons
Tricolor LED
LPCXpresso/mbed debug expansion connectors

Show

OM13085 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Bits	32 Bit
Core Architecture	ARM
Core Sub-Architecture	Cortex-M3
	Show
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
