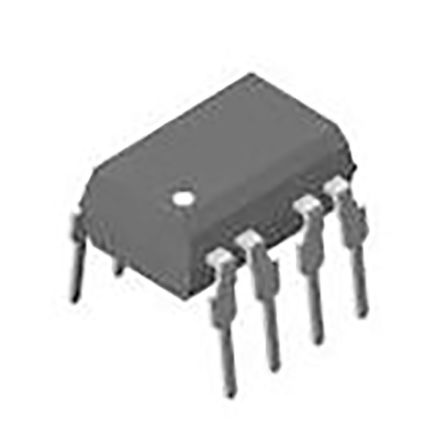

Image is for your reference only,please check specifications for details
- ILD74 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC2686230
-
Category:Optocoupler, Optoisolator
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler, Transistor Output, 2Channel, DIP, 8Pins, 60mA, 5.3kV, 12.5%
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ILD74 is a 2-channel Phototransistor Output Optocoupler with a GaAIAs infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. This optocoupler is especially for driving medium-speed logic, where it may be used to eliminate troublesome ground loop and noise problems. Also it can be used to replace relays and transformers in many digital interface applications, as well as analogue applications such as CTR modulation.
ILD74 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP |
| Voltage Rating (DC) | 1.30 V |
| Output Voltage | 70.0 V, 20.0 V |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.3 V |
| Input Current | 60.0 mA |
| Power Dissipation | 400 mW |
| Isolation Voltage | 5.3 kV |
| Forward Current | 60 mA |
| Output Voltage (Max) | 20 V |
| Input Current (Min) | 60 mA |
| Maximum Forward Voltage (Max) | 1.5 V |
| Forward Current (Max) | 60 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 400 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
