Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 16 Pin |

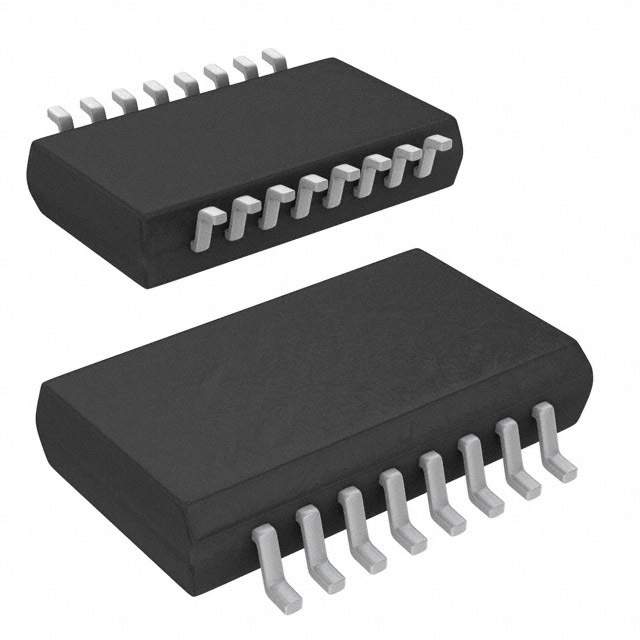

Case/Package | SOIC-16 |
Supply Current | 4 mA |
Number of Circuits | 2 Circuit |
Number of Channels | 2 Channel |
Common Mode Rejection Ratio | 110 dB |
Input Capacitance | 3.00 pF |
Slew Rate | 2.40 V/μs |
Gain Bandwidth Product | 5 MHz |
Input Impedance | 20.0 GΩ |
Input Offset Voltage | 50 µV |
Input Bias Current | 15 nA |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 5 MHz |
Minimum CMRR Range | 90 dB |
Supply Voltage (Max) | 36 V |
Supply Voltage (Min) | 9 V |
Show | |
Size-Height | 2.35 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | Non-Compliant |
Lead-Free Status | Contains Lead |
Mil-Spec | Yes |
