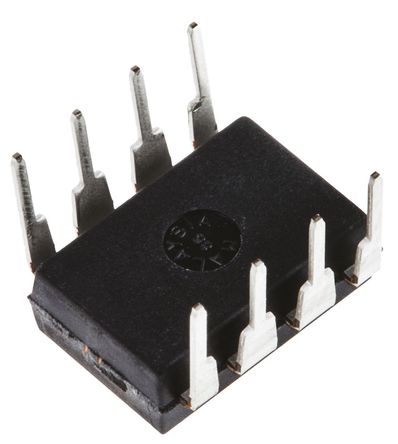

Image is for your reference only,please check specifications for details
- OP290GPZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC299400
-
Category:Operational Amplifier, OP Amp IC
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES OP290GPZ Operational Amplifier, Dual, 2 Amplifier, 20kHz, 0.012V/µs, 1.6V to 36V, DIP, 8Pins
-
Stock Locations:
-
Availability:272 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 17.95
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OP290GPZ is a high-performance micropower dual Operational Amplifier operates from a single supply of +1.6 to +36V. Input voltage range includes the negative rail allowing the OP290 to accommodate input signals down to ground in single supply operation. The OP290"s output swing also includes ground when operating from a single supply, enabling zero-in and zero-out operation. The OP290 draws less than 20µA of quiescent supply current per amplifier, while able to deliver over 5mA of output current to a load. Input offset voltage is below 200µV eliminating the need for external nulling. Gain exceeds 700000 and common-mode rejection is better than 100dB. The power supply rejection ratio supply rejection ratio of under 5.6µV/V minimizes offset voltage changes experienced in battery powered systems. The low offset voltage and high gain offered by the OP290 bring precision performance to micropower applications.
- Input/output ranges include ground
- 20µA/amplifier Maximum low supply current
- 5mA Minimum high output drive
- 200µV Typical low input offset voltage
- 400V/mV Minimum high open-loop gain
OP290GPZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 15.0 V |
| Supply Current | 25 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 80 dB |
| Bandwidth | 20 kHz |
| Slew Rate | 12.0 mV/μs |
| Gain Bandwidth Product | 20 kHz |
| Input Impedance | 20.0 GΩ |
| Input Offset Voltage | 125 µV |
| Input Bias Current | 4 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 20 kHz |
| Supply Voltage | 1.6V ~ 36V |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 1.6 V |
| Show | |
| Size-Length | 9.27 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
