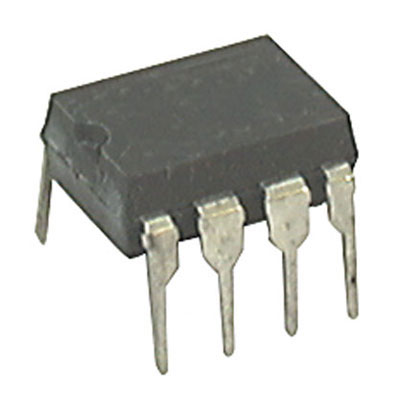

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- Rail-to-rail output swing combined with dc accuracy are the key features of the OP495 quad and OP295 dual CBCMOS operational amplifiers. By using a bipolar front end, lower noise and higher accuracy than that of CMOS designs has been achieved. Both input and output ranges include the negative supply, pro
- viding the user “zero-in/zero-out” capability. For users of 3.3 volt systems such as lithium batteries, the OP295/OP495 is specified for three volt operation.
- FEATURES
- Rail-to-Rail Output Swing
- Single-Supply Operation: +3 V to +36 V
- Low Offset Voltage: 300 mV
- Gain Bandwidth Product: 75 kHz
- High Open-Loop Gain: 1000 V/mV
- Unity-Gain Stable
- Low Supply Current/Per Amplifier: 150 mA max
- APPLICATIONS
- Battery Operated Instrumentation
- Servo Amplifiers
- Actuator Drives
- Sensor Conditioners
- Power Supply Control
OP295GP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Current | 175 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 90 dB |
| Slew Rate | 30.0 mV/μs |
| Gain Bandwidth Product | 0.075 MHz |
| Input Impedance | 10.0 MΩ |
| Input Offset Voltage | 300 µV |
| Input Bias Current | 7 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 0.075 MHz |
| Minimum CMRR Range | 90 dB |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 9.27 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
