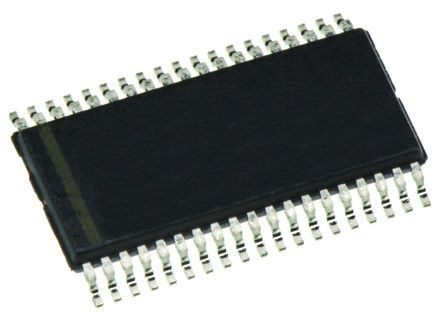

TMS320F28020DAT - TI
Manufacturer:
TI
ManyChip's Part#:
MC16680746
Category:
Microcontroller, MCU IC
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TMS320F28020DAT 32Bit Microcontroller, Piccolo, C2000, 40MHz, 32KB, 6KB, 38Pins, TSSOP
Stock Locations:
Availability:
439 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.53

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The F2802x Piccolo™ family of microcontrollers provides the power of the C28x core coupled with highly
integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x based code, and also provides a high level of analog integration.
Features
• High-Efficiency 32-Bit CPU (TMS320C28x)
– 60 MHz (16.67-ns Cycle Time)
– 50 MHz (20-ns Cycle Time)
– 40 MHz (25-ns Cycle Time)
– 16 × 16 and 32 × 32 MAC Operations
– 16 × 16 Dual MAC
– Harvard Bus Architecture
– Atomic Operations
– Fast Interrupt Response and Processing
– Unified Memory Programming Model
– Code-Efficient (in C/C++ and Assembly)
• Endianness: Little Endian
• Low Cost for Both Device and System:
– Single 3.3-V Supply
– No Power Sequencing Requirement
– Integrated Power-on and Brown-out Resets
– Small Packaging, as Low as 38-Pin Available
– Low Power
– No Analog Support Pins
• Clocking:
– Two Internal Zero-Pin Oscillators
– On-Chip Crystal Oscillator and External Clock Input
– Watchdog Timer Module
– Missing Clock Detection Circuitry
• Up to 22 Individually Programmable, Multiplexed GPIO Pins With Input Filtering
• Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
• Three 32-Bit CPU Timers
• Independent 16-Bit Timer in Each Enhanced Pulse Width Modulator (ePWM)
• On-Chip Memory
– Flash, SARAM, OTP, Boot ROM Available
• Code-Security Module
• 128-Bit Security Key and Lock
– Protects Secure Memory Blocks
– Prevents Firmware Reverse Engineering
• Serial Port Peripherals
– One Serial Communications Interface (SCI) Universal Asynchronous Receiver/Transmitter (UART) Module
– One Serial Peripheral Interface (SPI) Module
– One Inter-Integrated-Circuit (I2C) Module
• Enhanced Control Peripherals
– ePWM
– High-Resolution PWM (HRPWM)
– Enhanced Capture (eCAP) Module
– Analog-to-Digital Converter (ADC)
– On-Chip Temperature Sensor
– Comparator
• Advanced Emulation Features
– Analysis and Breakpoint Functions
– Real-Time Debug Through Hardware
• 2802x, 2802xx Packages
– 38-Pin DA Thin Shrink Small-Outline Package (TSSOP)
– 48-Pin PT Low-Profile Quad Flatpack (LQFP)
Applications
• White Goods
• Switch Mode Power Supplies (SMPSs)
• DC-DC Multiple-Output Power Supplies
• Solar Micro Inverters and Converters
• LED Lighting
• Power Factor Correction
• Sewing and Textile Machines
• eBikes

Show

TMS320F28020DAT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package	TSSOP-38
Frequency	40 MHz
Supply Voltage (DC)	1.71V (min)
Number of Positions	38 Position
Clock Speed	40.0 MHz
RAM Memory Size	6 KB
Number of Bits	32 Bit
FLASH Memory Size	32 kB
Number of UARTs	1 UART
Number of ADCs	1 ADC
Number of Inputs and Outputs	20 Input IO
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	1.995 V
Supply Voltage (Min)	1.71 V
	Show
Size-Length	12.6 mm
Size-Width	6.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
