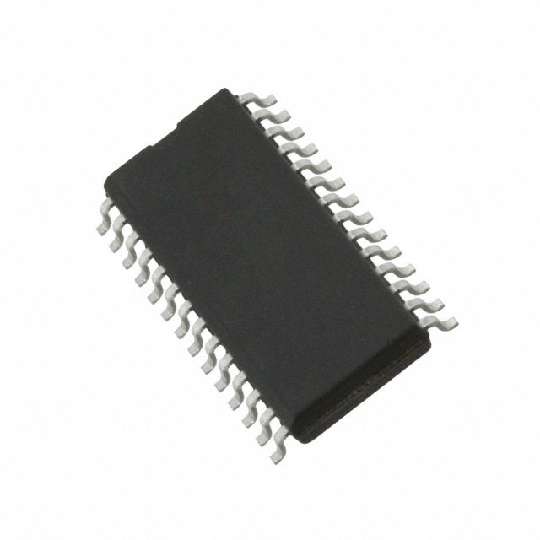

Image is for your reference only,please check specifications for details
- BTS7741G - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC134885476
-
Category:Motor Driver
-
Package:P-DSO-28
-
Datasheet:Datasheet 3D Model
-
Description:Smart Motorbridges + Driver ICs - 210mOhm TrilithIC Open Load in Off
-
Stock Locations:
-
Availability:227 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.65
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features
- • Quad D-MOS switch driver
- • Free configurable as bridge or quad-switch
- • Optimized for DC motor management applications
- •Low RDS ON: 110 mΩhigh-side switch, 100 mΩ low side switch (typical values @ 25°C)
- • Maximum peak current: typ. 10 A @ 25°C
- • Very low quiescent current: typ. 5 µA @ 25 °C
- • Small outline, enhanced power P-DSO-package
- • Full short-circuit-protection
- • Operates up to 40 V
- • Status flag diagnosis
- • Overtemperature shut down with hysteresis
- • Internal clamp diodes
- • Open load detection in Off-mode
- • Under-voltage detection with hysteresis
- • PWM frequencies up to 1 kHz
BTS7741G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | P-DSO-28 |
| Output Current | 10 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.8V ~ 42V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
