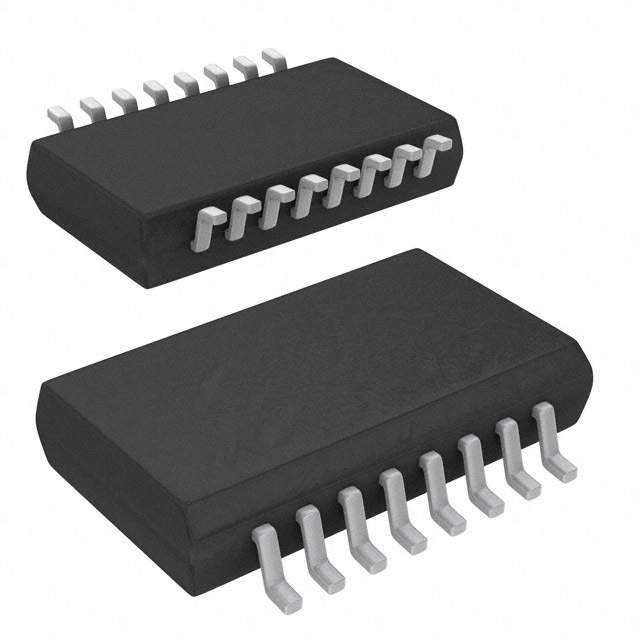

Image is for your reference only,please check specifications for details

OP413FSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC771637
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES OP413FSZ Operational Amplifier, Quad, 4 Amplifier, 3.4MHz, 1.2V/µs, ± 2V to ± 18V, WSOIC, 16Pins
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OP413FSZ is a quad Operational Amplifier features low noise and drift. It has been designed for systems with internal calibration. Often these processor-based systems are capable of calibrating corrections for offset and gain, but it cannot correct for temperature drifts and noise. Optimized for this parameter, the OPx13 family can be used to take advantage of superior analog performance combined with digital correction. The OPx13 family is unity gain stable and has a typical gain bandwidth product of 3.4MHz. Slew rate is in excess of 1V/µs. Noise density is a very low 4.7nV/√Hz and noise in the 0.1 to 10Hz band is 120nV p-p. Input offset voltage is guaranteed and offset drift is guaranteed to be less than 0.8µV/°C. Input common-mode range includes the negative supply and to within 1V of the positive supply over the full supply range. Phase reversal protection is designed into the OPx13 family for cases where input voltage range is exceeded.
Unity gain stable
No phase reversal
100µV Low offset voltage
0.2µV/°C Very low drift

Show

OP413FSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Current	3 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	90 dB
Bandwidth	3.4 MHz
Slew Rate	1.20 V/μs
Gain Bandwidth Product	3.5 MHz
Input Impedance	42.0 MΩ
Input Offset Voltage	275 µV
Input Bias Current	240 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3.4 MHz
Minimum CMRR Range	90 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4 V
	Show
Size-Width	7.6 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
