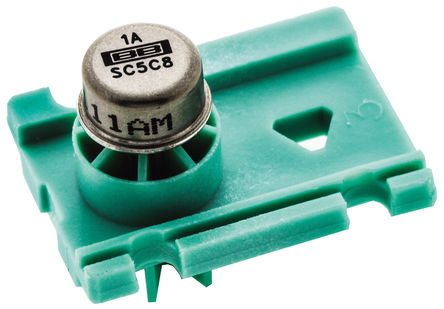

Image is for your reference only,please check specifications for details

OPA111AM - TI
Manufacturer:
TI
ManyChip's Part#:
MC8037503
Category:
Operational Amplifier, OP Amp IC
Package:
TO-99-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 2MHz, 2V/µs, ± 5V to ± 18V, TO-99, 8Pins
Stock Locations:
Availability:
2,360 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 35.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA111AM is a low noise precision Difet® Operational Amplifier. Outstanding performance characteristics allow its use in the most critical instrumentation applications. Noise, bias current, voltage offset, drift, open-loop gain, common-mode rejection and power supply rejection are superior to BIFET® amplifiers. Very low bias current is obtained by dielectric isolation with on-chip guarding. Laser trimming of thin-film resistors gives very low offset and drift. Extremely low noise is achieved with patented circuit design techniques. A new cascode design allows high precision input specifications and reduced susceptibility to flicker noise. Standard 741 pin configuration allows upgrading of existing designs to higher performance levels.
100dB Minimum CMMR
1pA Maximum low bias current
250µV Maximum low offset
1µV/°C Maximum low drift
Green product and no Sb/Br

Show

OPA111AM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	TO-99-8
Supply Voltage (DC)	15.0 V
Operating Voltage	5V ~ 18V
Supply Current	2.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	0.75 W
Common Mode Rejection Ratio	90 dB
Bandwidth	2 MHz
Slew Rate	2.00 V/μs
Gain Bandwidth Product	2 MHz
Input Offset Voltage	100 µV
Input Bias Current	0.8 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Gain Bandwidth	2 MHz
Power Dissipation (Max)	750 mW
Minimum CMRR Range	90 dB
Supply Voltage	10V ~ 36V
	Show
Size-Length	9.08 mm
Size-Width	9.08 mm
Size-Height	4.4 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
