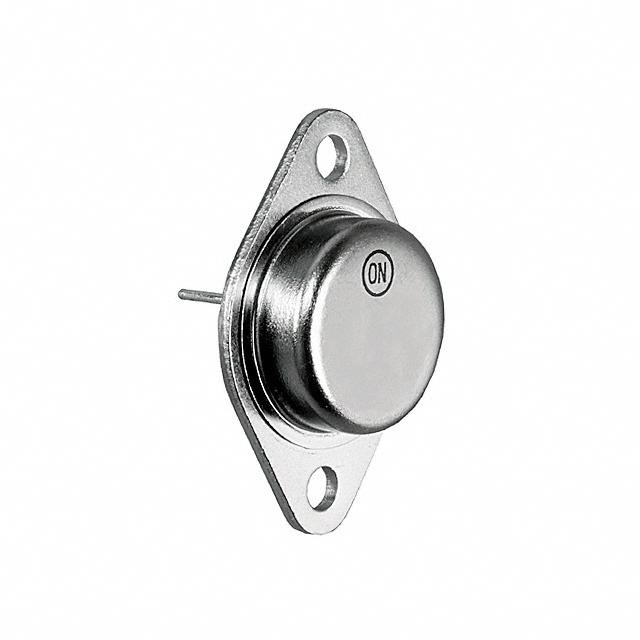

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Power 50A 80 V Bipolar NPN Transistor is designed for use in high power amplifier and switching circuit applications.
Features
---
|
High Current Capability - IC Continuous = 50 Amperes.
DC Current Gain - hFE = 15-60 @ IC = 25 Adc
Low Collector?Emitter Saturation Voltage - VCE(sat) = 1.0 Vdc (Max) @ IC = 25 Adc
Pb-Free Packages are Available

Show

2N5684 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3
Voltage Rating (DC)	-80.0 V
Current Rating	-20.0 A
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	50A
hFE Min	15 @25A, 2V
hFE Max	60
Input Power (Max)	300 mW
	Show
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tray
Minimum Packing Quantity	100
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
