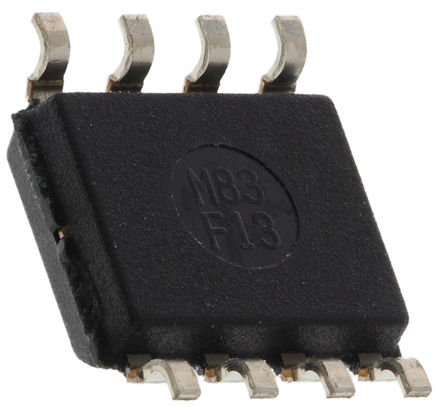

Image is for your reference only,please check specifications for details

OPA1602AID - TI
Manufacturer:
TI
ManyChip's Part#:
MC17646561
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA1602AID Operational Amplifier, Dual, 2 Amplifier, 35MHz, 20V/µs, ± 2.25V to ± 18V, SOIC, 8Pins
Stock Locations:
Availability:
1,596 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.99

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA1602AID is a SoundPlus™ high-performance bipolar-input audio Operational Amplifier achieves very low 2.5nV/√Hz noise density with an ultralow distortion of 0.00003% at 1kHz. The OPA1602 of op-amps offers rail-to-rail output swing to within 600mV with 2kR load, which increases headroom and maximizes dynamic range. This amplifier also has a high output drive capability of ±30mA and operates over a very wide supply range of ±2.25 to ±18V, on only 2.6mA of supply current per channel. This op-amp is unity-gain stable and provide excellent dynamic behaviour over a wide range of load conditions. This audio operational amplifier also features completely independent circuitry for lowest crosstalk and freedom from interactions between channels, even when overdriven or overloaded.
Superior sound quality
2.5nV/√Hz at 1kHz Ultralow noise
Unity gain stable
2.6mA per Channel low quiescent current
Rail-to-rail output
Dual and quad versions available
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

OPA1602AID Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	2.6 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	100 dB
Input Offset Drift	0.00 V/K
Bandwidth	35 MHz
Slew Rate	20.0 V/μs
Gain Bandwidth Product	35 MHz
Gain	120 dB
Input Offset Voltage	1 mV
Input Bias Current	20 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	35 MHz
Minimum CMRR Range	100 dB
Supply Voltage (Max)	18 V
Supply Voltage (Min)	2.25 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
