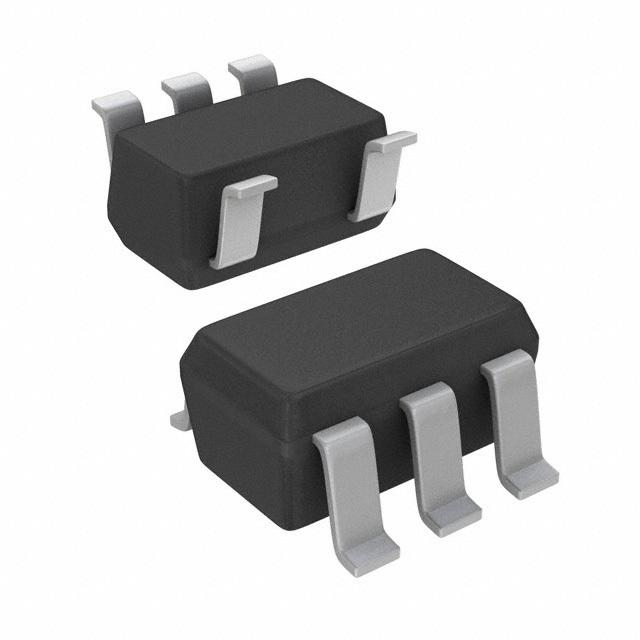

OPA192IDBVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3282792
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 10MHz, 1, 20V/ s, 4.5V to 36V, 2.25V to 18V, SOT-23, 5
Stock Locations:
Availability:
229 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.68

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA192IDBVR is a high voltage precision Operational Amplifier with rail-to-rail input/output. This device offers outstanding DC precision and AC performance. Unique features such as differential input-voltage range to the supply rail, high output current (±65mA), high capacitive load drive of up to 1nF and high slew rate (20V/µs) make the OPA192 a robust, high-performance operational amplifier for high-voltage industrial applications.
EMI/RFI filtered inputs
Differential input voltage range to supply rail
±5µV Low offset voltage
±0.2µV/°C Low offset voltage drift
5.5nV/√Hz at 1kHz Low noise
140dB High common-mode rejection
±5pA Low bias current
1mA/amplifier Low quiescent current
1nF High capacitive load drive capability
Green product and no Sb/Br

Show

OPA192IDBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Current	1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	100 dB
Input Offset Drift	150 nV/K
Bandwidth	10 MHz
Slew Rate	20.0 V/μs
Gain Bandwidth Product	10 MHz
Input Offset Voltage	5 µV
Input Bias Current	5 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	100 dB
	Show
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
