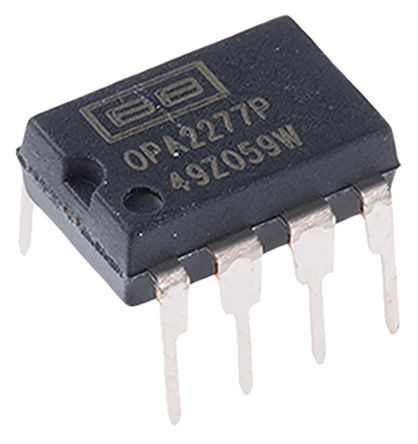

Image is for your reference only,please check specifications for details

OPA2277P - TI
Manufacturer:
TI
ManyChip's Part#:
MC2785496
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Dual, 1MHz, 2, 0.8V/ s, 2V to 18V, 5V to 15V, DIP, 8
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 25.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2277P is a high precision Operational Amplifier for use with precision integrators. It offers improved noise, wider output voltage swing and is twice as fast with half the quiescent current. Features include ultralow offset voltage and drift, low bias current, high common-mode rejection and high power supply rejection. Dual version has identical specifications, for maximum design flexibility. High performance is maintained as the amplifiers swing to their specified limits. Because the initial offset voltage (±20µV maximum) is so low, user adjustment is usually not required. OPA277 operational amplifier is easy to use and free from phase inversion and the overload problems found in some other operational amplifier. It is stable in unity gain and provides excellent dynamic behaviour over a wide range of load conditions. Dual version features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.
10µV Ultralow offset voltage
±0.1µV/°C Ultralow drift
134dB High open-loop gain
140dB High common-mode rejection
130dB High power supply rejection
1nA Maximum low bias current
800µA/amplifier Low quiescent current
Green product and no Sb/Br
