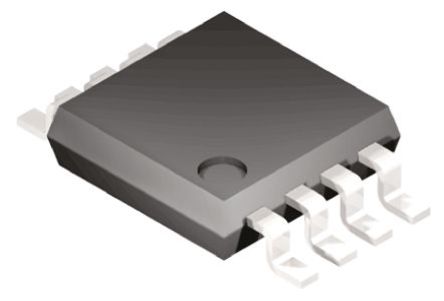

Image is for your reference only,please check specifications for details

OPA2322AIDGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC15608630
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2322AIDGKT Operational Amplifier, Dual, 2 Amplifier, 20MHz, 10V/µs, 1.8V to 5.5V, MSOP, 8Pins
Stock Locations:
Availability:
293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.04

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2322AIDGKT is a dual low noise CMOS Operational Amplifier with rail-to-rail input and output. Specified over a wide supply range of 1.8 to 5.5V, the low quiescent current of only 1.5mA per channel makes these devices well-suited for power-sensitive applications. The combination of very low noise (8.5nV/√Hz at 1kHz), high gain-bandwidth (20MHz) and fast slew rate (10V/µs) make the OPA322 family ideal for a wide range of applications, including signal conditioning and sensor amplification requiring high gains. Featuring low THD+N, the OPA322 series is also excellent for consumer audio applications, particularly for single-supply systems.
Unity-gain stable
0.0005% Low THD+N
2mV Maximum offset voltage
1.5mA/channel Supply current
0.1µA/channel Shutdown
Green product and no Sb/Br

Show

OPA2322AIDGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	1.5 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	90 dB
Input Offset Drift	1.80 µV/K
Bandwidth	20 MHz
Slew Rate	10.0 V/μs
Gain Bandwidth Product	20 MHz
Input Offset Voltage	500 µV
Input Bias Current	0.2 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	20 MHz
Minimum CMRR Range	90 dB
Supply Voltage	1.8V ~ 5.5V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
