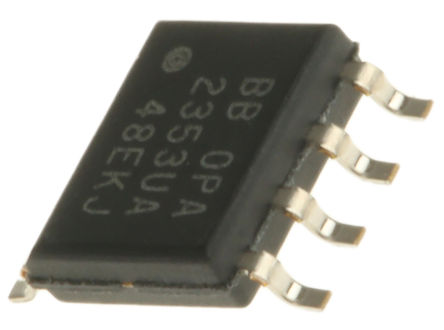

Image is for your reference only,please check specifications for details

OPA2353UA - TI
Manufacturer:
TI
ManyChip's Part#:
MC6953959
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2353UA Operational Amplifier, Dual, 2 Amplifier, 44MHz, 22V/µs, 2.7V to 5.5V, SOIC, 8Pins
Stock Locations:
Availability:
1,051 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.88

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2353UA is a dual CMOS Operational Amplifier designed for miniature applications. It is optimized for low voltage, single-supply operation. Rail-to-rail input/output, low noise and high speed operation (44MHz, 22V/ms) make them ideal for driving sampling analog-to-digital converters. It is also well suited for cell phone PA control loops and video processing (75W drive capability) as well as audio and general purpose applications. Dual version has identical specifications for design flexibility. The OPA353 series operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 300mV beyond the supply rails. Output voltage swing is to within 10mV of the supply rails with a 10kW load. Dual design feature completely independent circuitry for lowest crosstalk and freedom from interaction.
Unity-gain stable
5nV/√Hz Low noise
0.0006% Low THD+noise
5µV/°C Typical offset drift
86dB Typical CMRR
Green product and no Sb/Br

Show

OPA2353UA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.00 V
Output Current	40mA @5.5V
Supply Current	5.2 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	60 dB
Input Offset Drift	5.00 µV/K
Bandwidth	44 MHz
Slew Rate	22.0 V/μs
Gain Bandwidth Product	44 MHz
Input Offset Voltage	3 mV
Input Bias Current	0.5 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	44 MHz
Minimum CMRR Range	60 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
