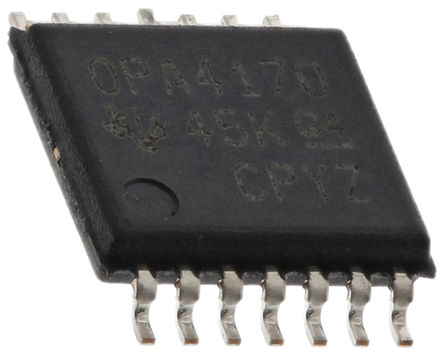

Image is for your reference only,please check specifications for details

OPA4170AIPW - TI
Manufacturer:
TI
ManyChip's Part#:
MC34966628
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA4170AIPW Operational Amplifier, QUAD, 1.2MHz, 4, 0.4V/ s, 2.7V to 36V, 1.35V to 18V, TSSOP, 14
Stock Locations:
Availability:
213 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.37

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA4170AIPW is a quad MicroPower general purpose Operational Amplifier with rail-to-rail output. It offers good offset, drift and bandwidth with low quiescent current. The quad version has identical specifications for maximum design flexibility. Unlike most operational amplifier, which is specified at only one supply voltage, the OPAx170 family of operational amplifiers is specified from 2.7 to 36V. Input signal beyond the supply rails do not cause phase reversal. The OPAx170 family is stable with capacitive loads up to 300pF. The input can operate 100mV below the negative rail and within 2V of the positive rail for normal operation.
RFI filtered inputs
Input range includes the negative supply
Input range operates to positive supply
19nV/√Hz Low noise
110µA/amplifier Low quiescent current
120dB High common-mode rejection
15pA Maximum low bias current
Green product and no Sb/Br

Show

OPA4170AIPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Current	110 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	90 dB
Input Offset Drift	300 nV/K
Bandwidth	1.2 MHz
Slew Rate	400 mV/μs
Gain Bandwidth Product	1.2 MHz
Thermal Shutdown	No
Input Offset Voltage	250 µV
Input Bias Current	8 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.2 MHz
Minimum CMRR Range	90 dB
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
