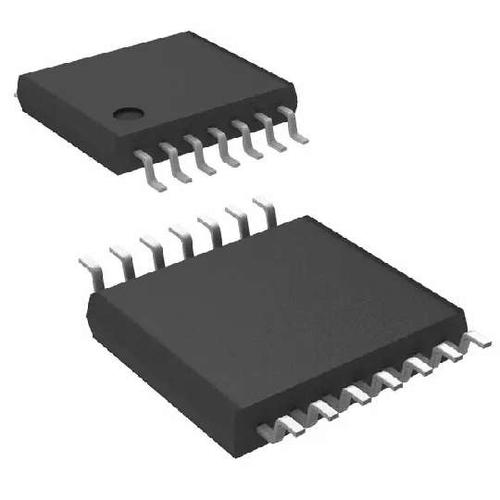

Image is for your reference only,please check specifications for details

OPA4354AIPWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC2934804
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA4354AIPWR Operational Amplifier, Quad, 100MHz, 4 Amplifier, 150V/s, 2.5V to 5.5V, TSSOP, 14Pins
Stock Locations:
Availability:
212 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA4354AIPWR is a quad high-speed voltage-feedback CMOS Operational Amplifier with rail-to-rail input and output. It is unity-gain stable and can drive large output currents. Common-mode input range extends beyond the supplies. The output swing is within 100mV of the rails, supporting wide dynamic range.
Thermal shutdown function
100MHz GBW Wide bandwidth
6.5nV/√Hz Low noise
>100mA High output current
0.02% Differential gain
0.09° Differential phase
0.1dB Gain flatness of 40MHz
3pA Low input bias current
4.9mA/channel Quiescent current
Green product and no Sb/Br

Show

OPA4354AIPWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Current	4.9 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	56 dB
Input Offset Drift	4.00 µV/K
Bandwidth	100 MHz
Slew Rate	150 V/μs
Gain Bandwidth Product	100 MHz
Input Offset Voltage	2 mV
Input Bias Current	3 pA
Available Channels	S, D, Q
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	250 MHz
Gain Bandwidth	100 MHz
Minimum CMRR Range	56 dB
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
