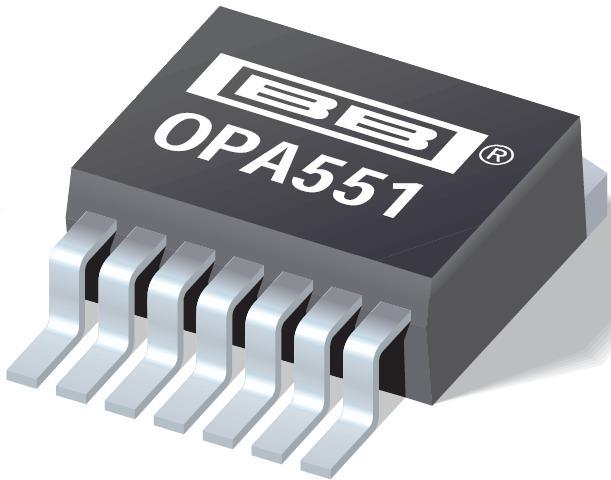

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The OPA547 is a low-cost, high-voltage/high-current operational amplifier ideal for driving a wide variety of loads. A laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current.
- FEATURES
- ●WIDE SUPPLY RANGE
- Single Supply: +8V to +60V
- Dual Supply: ±4V to ±30V
- ●HIGH OUTPUT CURRENT:
- 500mA Continuous
- ●WIDE OUTPUT VOLTAGE SWING
- ●FULLY PROTECTED:
- Thermal Shutdown
- Adjustable Current Limit
- ●OUTPUT DISABLE CONTROL
- ●THERMAL SHUTDOWN INDICATOR
- ●HIGH SLEW RATE: 6V/µs
- ●LOW QUIESCENT CURRENT
- ●PACKAGES:
- 7-Lead TO-220, Zip and Straight Leads
- 7-Lead DDPAK Surface-Mount
OPA547F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | D2PAK-7 |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Input Offset Drift | 25.0 µV/K |
| Slew Rate | 6.00 V/μs |
| Gain Bandwidth Product | 1.00 MHz |
| Gain Bandwidth | 1 MHz |
| Show | |
| Product Lifecycle Status | Obsolete |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
