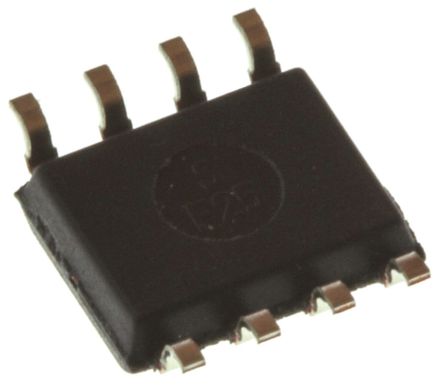

Image is for your reference only,please check specifications for details

OPA602AU - TI
Manufacturer:
TI
ManyChip's Part#:
MC7673600
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA602AU Operational Amplifier, Single, 1 Amplifier, 6.5MHz, 35V/µs, ± 5V to ± 18V, SOIC, 8Pins
Stock Locations:
Availability:
745 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.34

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The OPA602 is a precision, wide bandwidth FET operational amplifier. Monolithic Difet (dielectrically isolated FET) construction provides an unusual combination of high-speed and accuracy.
FEATURES
● WIDE BANDWIDTH: 6.5MHz
● HIGH SLEW RATE: 35V/µs
● LOW OFFSET: ±250µV max
● LOW BIAS CURRENT: ±1pA max
● FAST SETTLING TIME: 1µs to 0.01%
● UNITY-GAIN STABLE
APPLICATIONS
● PRECISION INSTRUMENTATION
● OPTOELECTRONICS
● SONAR, ULTRASOUND
● PROFESSIONAL AUDIO EQUIPMENT
● MEDICAL EQUIPMENT
● DATA CONVERSION

Show

OPA602AU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	1 W
Common Mode Rejection Ratio	75 dB
Input Offset Drift	3.00 µV/K
Bandwidth	6.5 MHz
Slew Rate	35.0 V/μs
Gain Bandwidth Product	6.5 MHz
Input Offset Voltage	1 mV
Input Bias Current	2 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Gain Bandwidth	6.5 MHz
Power Dissipation (Max)	1000 mW
Minimum CMRR Range	75 dB
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
