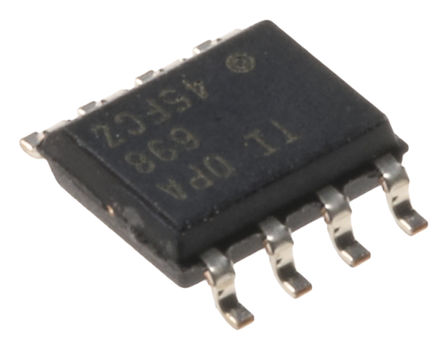

Image is for your reference only,please check specifications for details

OPA698ID - TI
Manufacturer:
TI
ManyChip's Part#:
MC35071832
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA698ID Limiting Amplifier, 450MHz, -5V, 5V, SOIC, 8Pins, -40℃
Stock Locations:
Availability:
348 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.86

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA698 is a wideband, unity-gain stable voltage-feedback op amp that offers bipolar output voltage limiting. Two buffered limiting voltages take control of the output when it attempts to drive beyond these limits. This new output limiting architecture holds the limiter offset error to ±10mV. The op amp operates linearly to within 20mV of the output limit voltages.
The combination of a narrow nonlinear range and the low limiting offset allows the limiting voltages to be set within 100mV of the desired linear output range. A fast 1ns recovery from limiting ensures that overdrive signals will be transparent to the signal channel. Implementing the limiting function at the output, as opposed to the input, gives the specified limiting accuracy for any gain, and allows the OPA698 to be used in all standard op amp applications.
Nonlinear analog signal processing will benefit from the ability of the OPA698 to sharply transition from linear operation to output limiting. The quick recovery time supports high-speed applications.
The OPA698 is available in an industry standard pinout SO-8 package. For higher gain, or transimpedance applications requiring output limiting with fast recovery, consider the OPA699.

Show

OPA698ID Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	-5.00 V (min)
Output Current	70mA @5V
Supply Current	15.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	54 dB
Quiescent Current	16.6 A
Input Offset Drift	15.0 µV/K
Bandwidth	450 MHz
Slew Rate	1.10 kV/μs
Gain Bandwidth Product	230 MHz
Input Offset Voltage	2 mV
Input Bias Current	3 µA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	450 MHz
Gain Bandwidth	250 MHz
Minimum CMRR Range	54 dB
Supply Voltage (Max)	5 V
Supply Voltage (Min)	5 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
