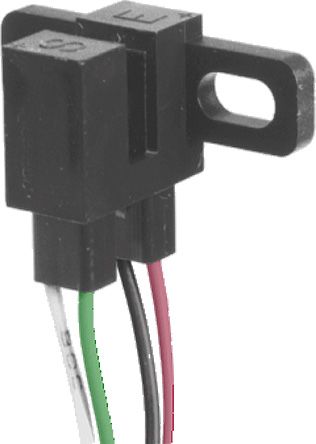

Image is for your reference only,please check specifications for details

OPB830W11Z - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC18776536
Category:
Optical Sensor
Package:
Pre-Wired
Datasheet:
Datasheet 3D Model
Description:
OPTEK TECHNOLOGY OPB830W11Z Transmissive Photo Interrupter, Phototransistor, 50mA, 1.7V, 2V, 0.25mm, 3.18mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB830 (L & W) series Slotted Optical Switch which provides the design engineer with the flexibility of a custom device from a standard product line. The L series a choice of PCBoard mount lead spacing, while the W series 24" (610mm) 26AWG wire leads. Building from a standard housing that utilizes a .375" (9.5mm) wide slot, user can specify the electrical output parameters, choice of aperture, discrete shell material, side mount configuration and a choice of lead spacing (for the L series) or 24" (610mm) UL approved 26 AWG wire leads (W series). Housings are made from an opaque grade of injection-molded plastic that minimizes the assembly"s sensitivity to visible and near-infrared ambient radiation. Switching of the phototransistor occurs whenever an opaque object passes through the slot and interrupts the beam.
0.125" (3.18mm) Wide slot
Choice of electrical output parameters
Choice of aperture
Choice of opaque or IR transmissive shell material
Side mount configuration
Choice of lead spacing (L series)
24" (610mm) 26 AWG wire leads (W series)

Show

OPB830W11Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Chassis
Number of Pins	4 Pin
Case/Package	Pre-Wired
Output Voltage	30 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.7 V
Wavelength	880 nm
Input Current	20 mA
Peak Wavelength	880 nm
Power Dissipation	100 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	50 mA
Reverse Breakdown Voltage	2 V
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	23.75 mm
Size-Width	6.35 mm
Size-Height	10.54 mm
Material	Plastic
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
