Description

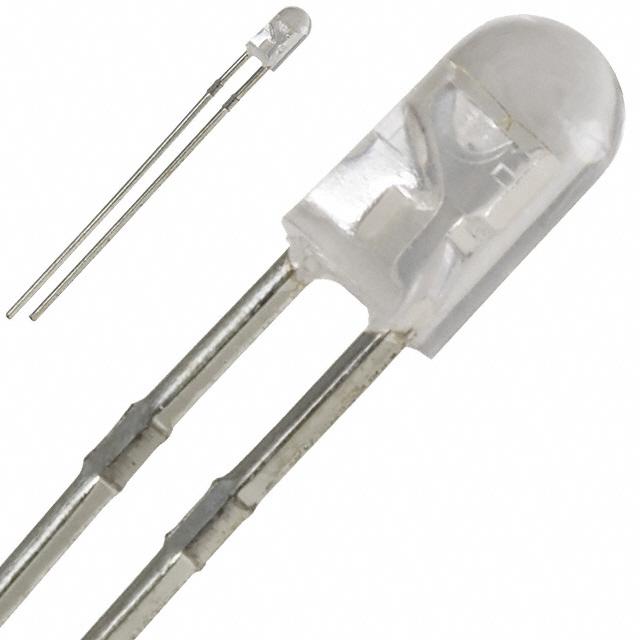

The OVLBG4C7 is a round through-hole LED Lamp with UV-resistant water clear lens. It is made of InGaN. The OVLBx4C7 series device is a high-intensity LED mounted in a clear plastic package. The LED provides a well-defined and even emission pattern. Its UV-resistant epoxy lens makes this device an optimal solution for outdoor applications.
High brightness with well-defined spatial radiation patterns
No standoffs
5V Reverse voltage
80mW Power dissipation
125°C LED junction temperature

Show

OVLBG4C7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	T-1
Power Rating	100 mW
Forward Voltage	3.2 V
Wavelength	525 nm
Luminous Intensity	8400 mcd
Viewing Angle	45°
Lens Type	Non-Diffused
Peak Wavelength	521 nm
Power Dissipation	100 W
Test Current	20 mA
Forward Current	20 mA
Maximum Forward Voltage (Max)	4 V
Forward Current (Max)	25 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Height	5.1 mm
Lead Length	23.9 mm
Color	Green
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
