Description

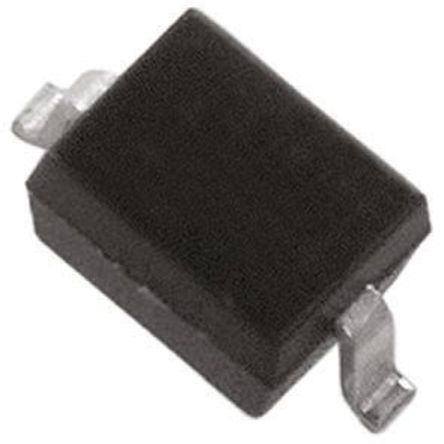

The PESD3V3L1BA is a low capacitance bidirectional ESD Protection Diode, designed to protect one signal line from the damage caused by ESD and other transients. Optimum performance in high-frequency applications, increased layout flexibility and more PCB space and reduced power consumption for extended battery life. The flexible ESD protection for high-speed applications.
3.3V Reverse stand-off voltage
101pF (f=1MHz) Capacitance
30kV Electrostatic discharge capability
400R at 1mA Differential resistance
ESD sensitive device, take proper precaution while handling the device.

Show

PESD3V3L1BA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Breakdown Voltage	6.40 V
Number of Positions	2 Position
Clamping Voltage	20 V
Test Current	5 mA
Peak Pulse Power	500 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1.05 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
