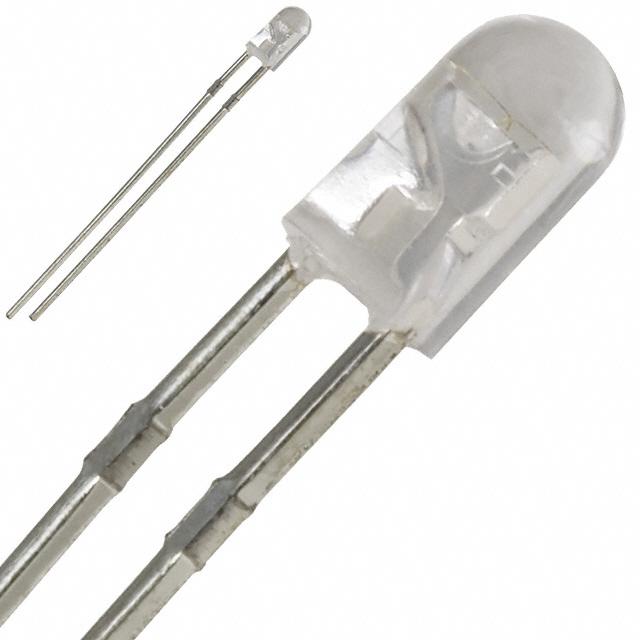

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OVLBR4C7 from Optek Tchnology is a round shape, high intensity red colour LED made of AllnGaP material. Its UV resistant epoxy lens makes this device an optimal solution for outdoor applications. This LED is widely used at pedestrian signals, signage and architectural lighting, backlighting and outdoor/indoor displays.
Standard bulb size of T-1 (3mm)
Forward voltage is 2V
Forward current (If) is 20mA
Viewing angle is 45°
Dominant wavelength is 623nm
Provides a well defined and even emission pattern
Luminous intensity of 3700mcd at 20mA

Show

OVLBR4C7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	T-1
Power Rating	120 mW
Forward Voltage	2.2 V
Wavelength	623 nm
Luminous Intensity	1.9 cd
Viewing Angle	45°
Lens Type	Non-Diffused
Peak Wavelength	633 nm
Power Dissipation	120 W
Test Current	20 mA
Forward Current	20 mA
Maximum Forward Voltage (Max)	2.4 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	120 mW
	Show
Size-Height	5.1 mm
Lead Length	23.9 mm
Color	Red
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
