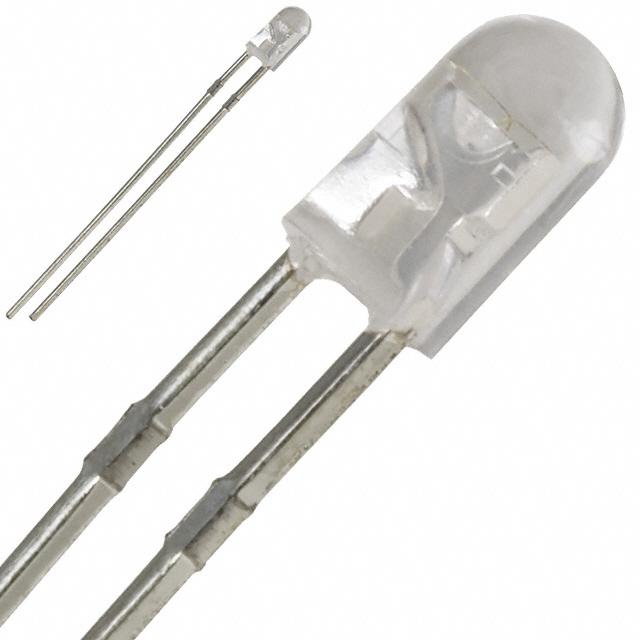

Image is for your reference only,please check specifications for details

OVLBY4C7 - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC13546069
Category:
Based LED
Package:
T-1
Datasheet:
Datasheet 3D Model
Description:
OPTEK TECHNOLOGY OVLBY4C7 LED, Yellow, Through Hole, T-1 (3mm), 20mA, 2V, 595nm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 27/05/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OVLBY4C7 is a round through-hole LED Lamp with UV-resistant water clear lens. It is made of AllnGaP. The OVLBx4C7 series device is a high-intensity LED mounted in a clear plastic package. The LED provides a well-defined and even emission pattern. Its UV-resistant epoxy lens makes this device an optimal solution for outdoor applications.
High brightness with well-defined spatial radiation patterns
No standoffs
5V Reverse voltage
80mW Power dissipation
125°C LED junction temperature

Show

OVLBY4C7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	T-1
Power Rating	120 mW
Forward Voltage	2 V
Wavelength	589 nm
Luminous Intensity	1.8 cd
Viewing Angle	45°
Lens Type	Non-Diffused
Peak Wavelength	593 nm
Power Dissipation	120 W
Test Current	20 mA
Forward Current	20 mA
Maximum Forward Voltage (Max)	2.4 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	120 mW
	Show
Size-Height	5.1 mm
Lead Length	23.9 mm
Color	Yellow
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
