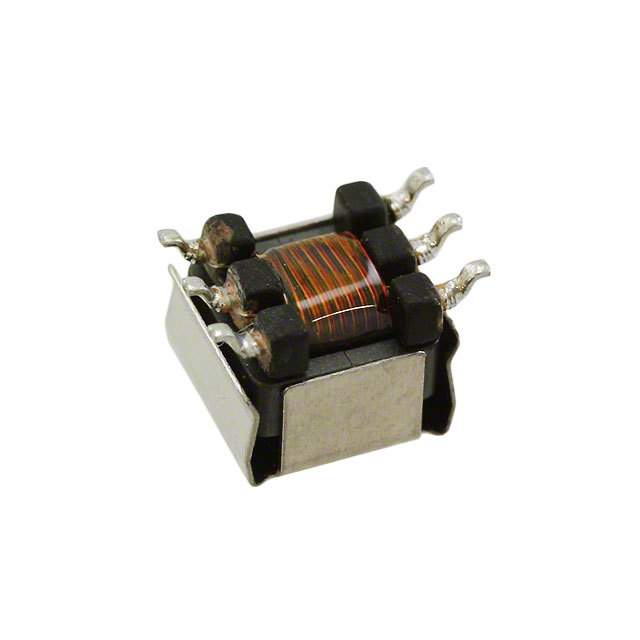

Image is for your reference only,please check specifications for details
- P0926NL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC16819382
-
Category:Transformer
-
Datasheet:Datasheet 3D Model
-
Description:Импульсный трансформатор 1:1:1 1500 В постоянного тока 2 Ом первичной обмотки DCR 2 Ом вторичной обмотки DCR 6 выводов SMD с выводами типа "крыло чайки"
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P0926NL производится компанией Pulse Electronics и относится к категории импульсных трансформаторов. P0926NL описывается как PULSE XFMR 1:1:1 300 мкГн. Perfect Parts является поставщиком трансформаторов и других различных изделий.
P0926NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Inductance | 300 µH |
| Isolation Voltage | 1.5 kV |
| Operating Temperature (Max) | 130 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 8 mm |
| Size-Width | 6.6 mm |
| Size-Height | 5.33 mm |
| Operating Temperature | -40℃ ~ 130℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
