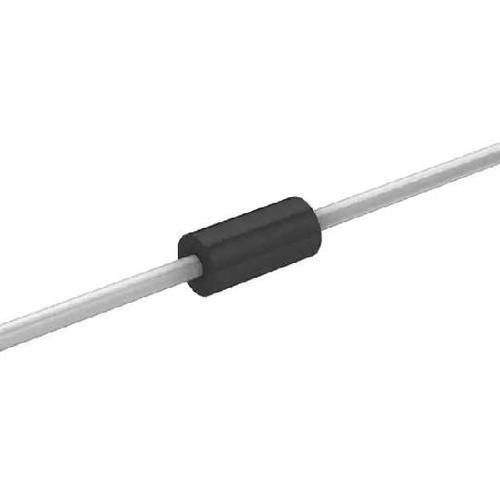

Image is for your reference only,please check specifications for details
- P4KE400A - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC11888793
-
Category:TVS Diode
-
Package:DO-204AL
-
Datasheet:Datasheet 3D Model
-
Description:Trans Voltage Suppressor Diode, 400W, 342V V(RWM), Unidirectional, 1Element, Silicon, DO-204AL, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, DO-41, 2Pin
-
Stock Locations:
-
Availability:1,037 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.65
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 548V Clamp 750mA Ipp Tvs Diode Through Hole DO-204AL (DO-41)
P4KE400A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-204AL |
| Voltage Rating (DC) | 400 V |
| Power Rating | 400 W |
| Breakdown Voltage | 400 V |
| Number of Circuits | 1 Circuit |
| Power Dissipation | 400 W |
| Clamping Voltage | 548 V |
| Test Current | 1 mA |
| Peak Pulse Power | 400 W |
| Min Breakdown Voltage | 380 V |
| Reverse Breakdown Voltage | 380 V |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | -55℃ ~ 175℃ |
| Show | |
| Size-Length | 5.2 mm |
| Size-Diameter | 2.70 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
