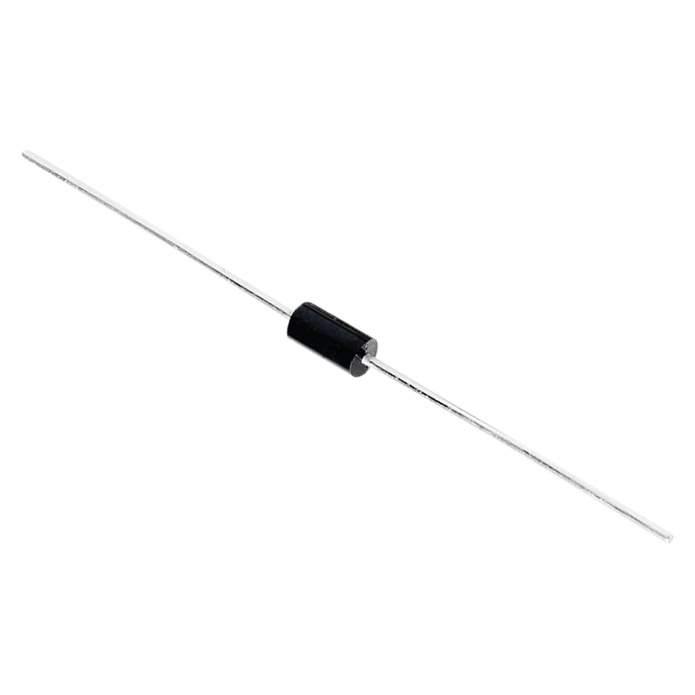

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Protect sensitive electronics against voltage transients induced by inductive load switching and lightning. Ideal for the protection of I/O interfaces, Vcc bus, and other integrated circuits.
- FEATURES
- • Breakdown voltage range 6.8 to 440 Volts
- • Uni-directional and Bi-directional
- • Glass passivated junction
- • Excellent clamping capability
- • 100% surge tested
- • UL recognised
P6KE22CA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-204AC |
| Voltage Rating (DC) | 22.0 V |
| Power Rating | 600 W |
| Clamping Voltage | 30.6 V |
| Test Current | 1 mA |
| Peak Pulse Power | 600 W |
| Min Breakdown Voltage | 20.9 V |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | -55℃ ~ 175℃ |
| Show | |
| Size-Length | 7.60 mm |
| Size-Diameter | 3.60 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
