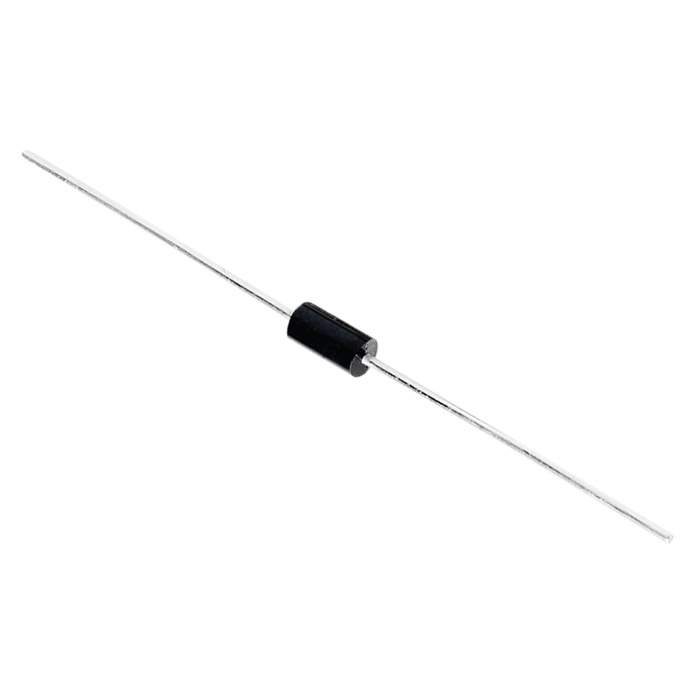

Image is for your reference only,please check specifications for details

P6KE62A - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC46761993
Category:
TVS Diode
Package:
DO-204AC
Datasheet:
Datasheet 3D Model
Description:
LITTELFUSE P6KE62A TVS Diode, P6KE Series, Unidirectional, 53V, 85V, DO-204AC, 2Pins New
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Protect sensitive electronics against voltage transients induced by inductive load switching and lightning. Ideal for the protection of I/O interfaces, Vcc bus, and other integrated circuits.
FEATURES
• Breakdown voltage range 6.8 to 440 Volts
• Uni-directional and Bi-directional
• Glass passivated junction
• Excellent clamping capability
• 100% surge tested
• UL recognised

Show

P6KE62A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AC
Number of Positions	2 Position
Clamping Voltage	85 V
Test Current	1 mA
Max Breakdown Voltage	65.1 V
Peak Pulse Power	600 W
Min Breakdown Voltage	58.9 V
Reverse Breakdown Voltage	58.9 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
	Show
Size-Length	7.60 mm
Size-Diameter	3.60 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
