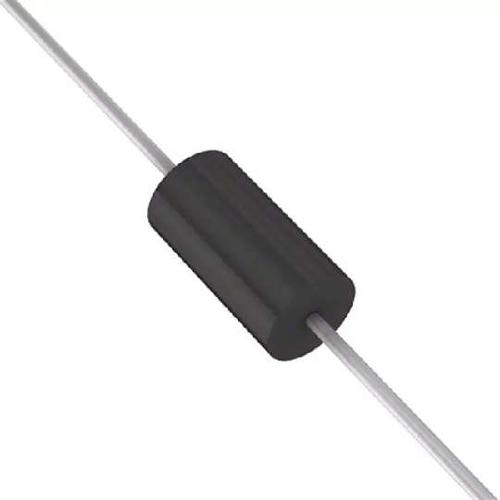

Image is for your reference only,please check specifications for details

P6KE68CA - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC2696619
Category:
TVS Diode
Package:
DO-204AC-2
Datasheet:
Datasheet 3D Model
Description:
Diode; 6.6A; 58.1V (Min.) @ 1mA; 5uA @ 58.1V; 100A (Max.); 600W (Min.)
Stock Locations:
Availability:
1,931 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.11

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

P6KE Series Silicon Avalanche Diodes
* Glass passivated chip junction in DO-15 package
* Uni-directional and bi-directional
* Excellent clamping capability
* Low zener impedance
The P6KE Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

Show

P6KE68CA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AC-2
Voltage Rating (DC)	6.80 V
Operating Voltage	58.1 V
Current Rating	6.6 A
Power Rating	600 W
Breakdown Voltage	64.6 V
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	92 V
Test Current	1 mA
Max Breakdown Voltage	71.4 V
Forward Current	6.6 A
Peak Pulse Power	600 W
Min Breakdown Voltage	64.6 V
Reverse Breakdown Voltage	64.6 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	7.6 mm
Size-Diameter	3.60 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
HTS Code	8541100080
