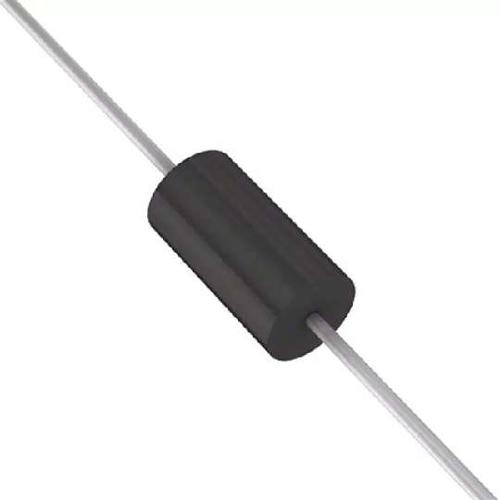

Image is for your reference only,please check specifications for details

P6KE75A - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC19438803
Category:
TVS Diode
Package:
DO-204AC
Datasheet:
Datasheet 3D Model
Description:
LITTELFUSE P6KE75A TVS Diode, P6KE Series, Unidirectional, 64.1V, 103V, DO-204AC, 2Pins
Stock Locations:
Availability:
115 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Protect sensitive electronics against voltage transients induced by inductive load switching and lightning. Ideal for the protection of I/O interfaces, Vcc bus, and other integrated circuits.
FEATURES
• Breakdown voltage range 6.8 to 440 Volts
• Uni-directional and Bi-directional
• Glass passivated junction
• Excellent clamping capability
• 100% surge tested
• UL recognised

Show

P6KE75A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AC
Voltage Rating (DC)	7.50 V
Power Rating	600 W
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	103 V
Max Breakdown Voltage	78.8 V
Peak Pulse Power	600 W
Min Breakdown Voltage	71.3 V
	Show
Size-Length	7.60 mm
Size-Diameter	3.60 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
