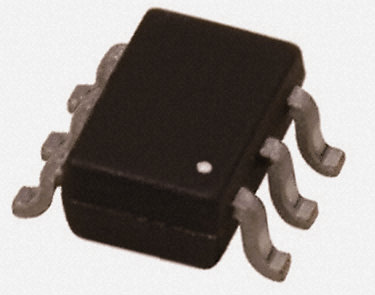

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

PBSS4160DPN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOP
Polarity	NPN+PNP
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	1A/0.9A
hFE Min	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	700 mW
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
