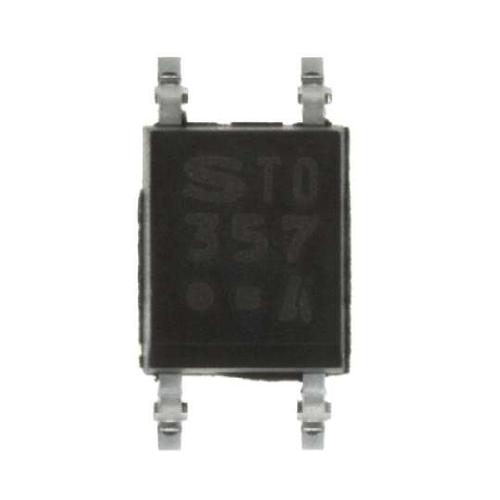

Image is for your reference only,please check specifications for details
- PC357N1J000F - Sharp
-
Manufacturer:Sharp
-
ManyChip's Part#:MC1331574
-
Category:Optocoupler, Optoisolator
-
Package:4-Mini-Flat
-
Datasheet:Datasheet 3D Model
-
Description:PC357 Series 1Channel 80V 3750Vrms SMT General Purpose Photocoupler - MFP-4
-
Stock Locations:
-
Availability:9,500 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.12
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat
PC357N1J000F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 4-Mini-Flat |
| Rise/Fall Time | 4µs, 3µs |
| Input Voltage (DC) | 1.20 V |
| Output Voltage | ≤80.0 V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.2 V |
| Input Current | 50 mA |
| Power Dissipation | 170 mW |
| Rise Time | 4 µs |
| Isolation Voltage | 3750 Vrms |
| Forward Current | 50 mA |
| Output Voltage (Max) | 80 V |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 3 µs |
| Fall Time (Max) | 18 µs |
| Fall Time (Max) | 18 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Power Dissipation (Max) | 170 mW |
| Show | |
| Size-Length | 4.4 mm |
| Size-Width | 3.6 mm |
| Size-Height | 2.6 mm |
| Operating Temperature | -30℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
