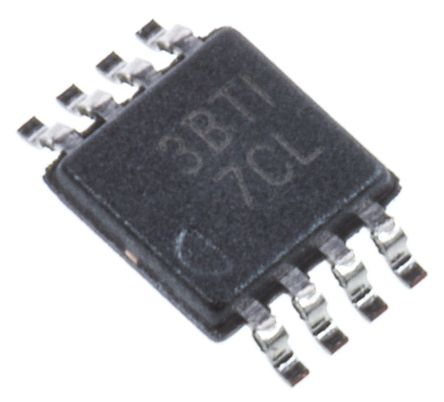

Image is for your reference only,please check specifications for details
- PCA9536DGKR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2761729
-
Category:Interface IC, Interface Controller
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:I2C/SMBus GPIO Expander 100kHz/400kHz 5.5V 8Pin VSSOP T/R
-
Stock Locations:
-
Availability:244 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.76
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PCA9536DGKR is a 4-bit I/O Expander for the two-line bidirectional bus (I²C) is designed for 2.3 to 5.5V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I²C interface [serial clock (SCL), serial data (SDA)]. The PCA9536 features 4-bit configuration (input or output selection), input port, output port and polarity inversion (active high or active low) registers. At power on, the I/Os are configured as inputs with a weak pull-up to VCC. However, the system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. If no signals are applied externally to the PCA9536, the voltage level is 1 or high, because of the internal pull-up resistors. The data for each input or output is stored in the corresponding input port or output port register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
- 1µA Maximum low standby current consumption
- Input/output configuration register
- Polarity inversion register
- Internal power-ON reset
- No glitch on power-up
- Power-up with all channels configured as inputs
- Noise filter on SCL/SDA input
- Latched outputs with high-current drive maximum capability for directly driving LEDs
- Latch-up performance exceeds 100mA per JESD 78, class II
- ESD Protection exceeds JESD
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
PCA9536DGKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Frequency | 400 kHz |
| Supply Voltage (DC) | 2.30V ~ 5.50V |
| Operating Voltage | 5.50V (max) |
| Number of Outputs | 4 Output |
| Supply Current | 73.0 µA |
| Number of Positions | 8 Position |
| Clock Speed | 400 kHz |
| Voltage Nodes | 2.70 V, 3.30 V, 3.60 V, 5.00 V |
| Number of Inputs and Outputs | 4 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.3 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
