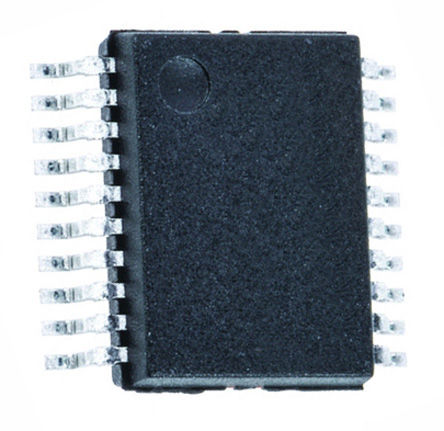

PCM1802DB - TI
Manufacturer:
TI
ManyChip's Part#:
MC2600611
Category:
Analog to Digital, ADC IC
Package:
SSOP-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM1802DB Analog to Digital Converter, 24Bit, 96KSPS, Single, 4.5V, 5.5V, SSOP
Stock Locations:
Availability:
84 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1802 is a high-performance, low-cost, single-chip stereo analog-to-digital converter with single-ended analog voltage input. The PCM1802 uses a delta-sigma modulator with 64-times or 128-times oversampling, and includes a digital decimation filter and high-pass filter (HPF), which removes the DC component of the input signal. For various applications, the PCM1802 supports master and slave modes and four data formats in serial interface. The PCM1802 is suitable for a wide variety of cost-sensitive consumer applications where good performance, 5-V analog supply, and 3.3-V digital supply operation is required. The PCM1802 is fabricated using a highly advanced CMOS process and is available in the DB 20-pin SSOP package.

Show

PCM1802DB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Supply Voltage (DC)	4.50V (min)
Supply Current	24.0 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Number of Bits	24 Bit
Power Dissipation	176 mW
Sample Rate	96 ksps
Power Consumption	147 mW
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	183 mW
Number of Input Channels	2 Channel
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	7.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
